Ti-5Al-2.5Sn Sheet/Plate

Home » Product » Titanium Alloy » Ti-5Al-2.5Sn » Ti-5Al-2.5Sn Sheet/Plate

FORMS WE CAN PROVIDE

Ti-5Al-2.5Sn Sheet/Plate
Ti-5Al-2.5Sn Rod/Bar
Ti-5Al-2.5Sn Tube/Pipe
Ti-5Al-2.5Sn Wire

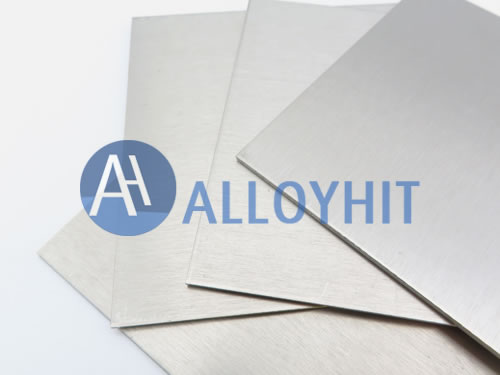

Ti-5Al-2.5Sn Sheet

Request A Quote

Elastic properties of Ti-5Al-2.5Sn Sheets

Tensile modulus of elasticity
Form δ/mm State θ/℃ E/GPa
Sheets ≤3 Annealing 20 112.8
250 93.2
350 83.4
500 71.6

Mechanical properties of Ti-5Al-2.5Sn Sheets

Properties of Ti-5Al-2.5Sn Sheets
Form State δ or d/mm Sampling direction Room temperature 350℃ 500℃
σb/MPa σP0.2/MPa δ5/% ψ/% α/(°) αku/kJ·m-2 σb σ100 σb σ100
MPa
≥
Sheets Annealing 0.8～1.5 LT 735～930 685 20 - 50 - 490 440 440 195
1.6～2.0 15 50
2.1～5.0 12 40
5.1～10.0 12 -
Sheets Annealing 0.8～1.5 LT ≥765 685 20 - 50 - 490 440 440 195
1.6～2.0 15 50
2.1～10.0 12 40
Sheets(Foils) Annealing 0.8～1.5 LT(L) 765～930 685 20 - 50 - 490 440 440 195
1.6～2.0 15 50
2.1～5.0 12 40
5.1～10.0 12 -

Tensile properties of Ti-5Al-2.5Sn Sheets
Form δ or d/mm State Sampling direction θ/℃ σb/MPa σp0.2/MPa δ5/% ψ/%
Sheets ≤3 Annealing LT 20 834 735 13 -
250 588 510 13 -
350 539 471 10 -
400 529 451 10 -
500 471 392 9 -

Bearing capacity of Ti-5Al-2.5Sn Sheets
Form δ/mm State θ/℃ e/D σbru/MPa σbry/MPa
A B A B
Sheets 0.4～2.0 Annealing 20 1.5 1150 1235 915 960
2 1725 1850 1310 1365
2.1～4.7 Annealing 20 1.5 1150 1260 915 980
2 1725 1895 1310 1400

High temperature durability of Ti-5Al-2.5Sn Sheets
Form δ/mm State θ/℃ σ100 σ500 σ1000 σ2000
MPa
Sheets 3 Annealing 250 - - 578 -
300 - - 549 -
350 - - 529 -
400 - - 382 -
450 - - 255 -
500 - - 167 -

High temperature creep properties of Ti-5Al-2.5Sn Sheets</td>
Form δ or d /mm State θ/℃ σ0.2/100/MPa
Sheets  3 Annealing 250 490
300 441
350 373
500 49
